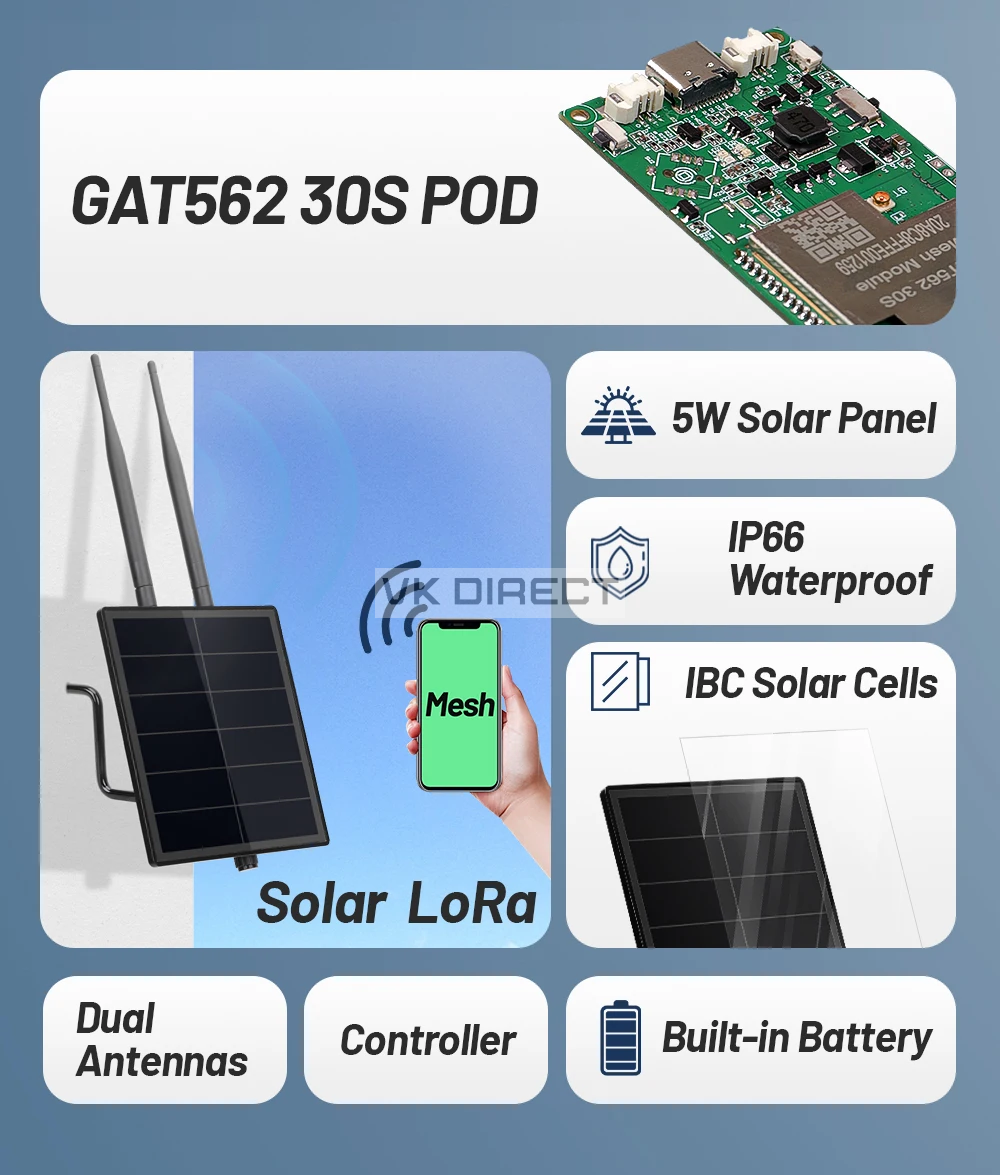

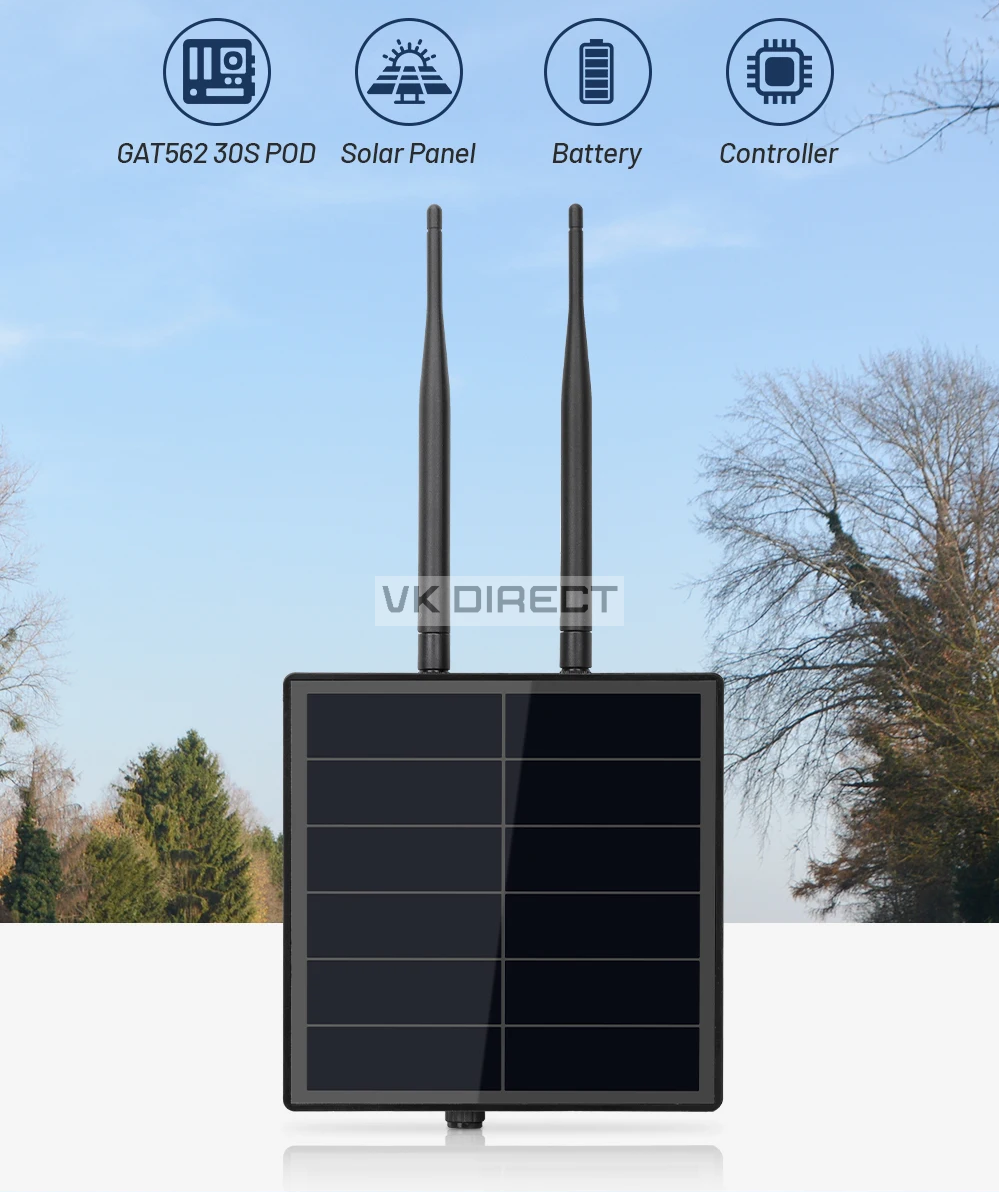

The Solar Mesh Repeater has onboard GPS & Batteries and can be installed remotely. We offer this node with either Meshtastic or Meshcore Repeater firmware installed.
Mounting Options: Wall Mount or Pole Mount adapter included.
When used with the VKD915 Antenna – ensure total EIRP doesn’t exceed the 1W (30dBi) ACMA LIPD Class Licence.
2x 2dBi Rubber Ducky Antenna supplied with unit, 1x AU915 and 1x BLE
| Specification | |
|---|---|
| LoRa Chip | nRF52840 + SX1262 + Power Amplifier |
| Power Output | 30dBi (1 Watt) |
| LoRa Frequency Range | 863–928 MHz |
| Solar Panel | 5 W |
| Solar Panel Efficiency | 24.3% |
| Solar Panel Material | Monocrystalline Silicon |
| Solar Panel Surface | Tempered Glass |
| Solar Panel Size | 17.5 × 17.5 cm |
| Solar Working Voltage / Current | Max. 6 V / 0.85 A |
| Battery | 4 × 2500 mAh batteries (Installed) |
| Battery Voltage | 3.7 V |
| Battery Removable | Yes |
| Charging – Type-C | 5–6 hours |
| Charging – Solar | 10–12 hours in sunlight |
| Circuit Protection | Short-circuit protection, reverse-polarity protection and overcharge protection |
